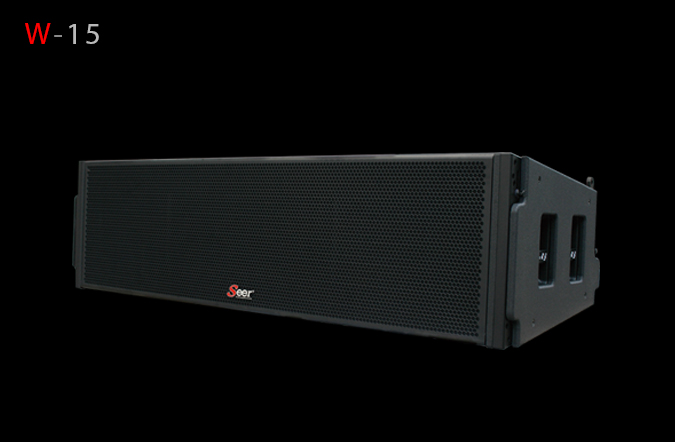

W-15
-
Description
W-15 is used two 15"Neodymium and two 3"Neodymium drivers and two 10"Neodymium MF speakers compress driver, trapezoidal enclosure, inside driver protection device. It is constructed with best ply-wood, mechanized with assembled process, and use special waterproof speakon.
Big gymnasium, sporting place, all kind of performance movements
Medium and large touring, theatre
Specification:
|
Model |
W-15 |
|
Frequency Response |
40Hz-18KHz |
|
Directivity Angle |
H90°×V10° |
|
Impedance |
8 ohms/ 8 ohms/8 ohms(HF.MF.LF) |
|
Long-term Power(RMS) |
300W/500W/800W(HF.MF.LF) |
|
Power Peak Handling |
600W/1000W/1600W/5Min (HF.MF.LF) |
|
Sensitivity |
125 dB /120 dB /115dB(HF.MF.LF) |
|
Maximum SPL |
142 dB /135 dB /130dB(HF.MF.LF) |
|
Connection |
2×NL 8 speakon |
|
Enclosure Construction |
15-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
|
DimensionsH×W×D |
410×1500×650mm |
|
Low |
15 IN×2（380mm） |
|
Mid |
10INx2(260mm) |
|
High (Neodymium) |
3IN×2（75mm) |
|
N.W. |
86Kg |
|
Model |
W-28 |
|
Frequency Response |
35Hz-250Hz |
|
Directivity Angle |
--------------- |
|
Impedance |
4 ohms |
|
Long-term Power(RMS) |
1600W |
|
Power Peak Handling |
3200W/5Min |
|
Sensitivity |
112dB(2.83V/m) |
|
Maximum SPL |
138dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
18-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
|
DimensionsH×W×D |
550×1200×850mm |
|
Low |
18 IN×2（460mm） |
|
High |
-------------------- |
|
N.W. |
116Kg |
.
