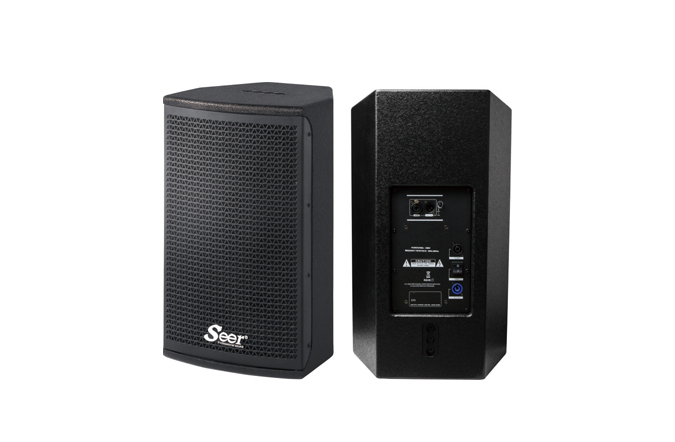

CT-115/115A
Specification:
|
Model |
CT-115 |
CT-115A |
|
Frequency Response |
50Hz-20KHz |
50Hz-20KHz |
|
Directivity Angle |
H90°×V60° |
H90°×V60° |
|
Impedance |
8 ohms |
8 ohms |
|
Long-term Power(RMS) |
500W |
500W |
|
Power Peak |
1000W/5Min |
1000W/5Min |
|
Sensitivity |
99dB(2.83V/M) |
99dB(2.83V/M) |
|
Maximum SPL |
125dB |
125dB |
|
Connection |
2×NL 4 speakon |
2×NL 4 speakon |
|
DimensionsH×W×D |
735×440×470mm |
735×440×470mm |
|
Low |
15 IN×1（380mm） |
15 IN×1（380mm） |
|
High |
2 IN×1（44mm） |
2 IN×1（44mm） |
|
N.W. |
36kg |
38kg |
| Power | AC 220V / 50Hz-60Hz |
