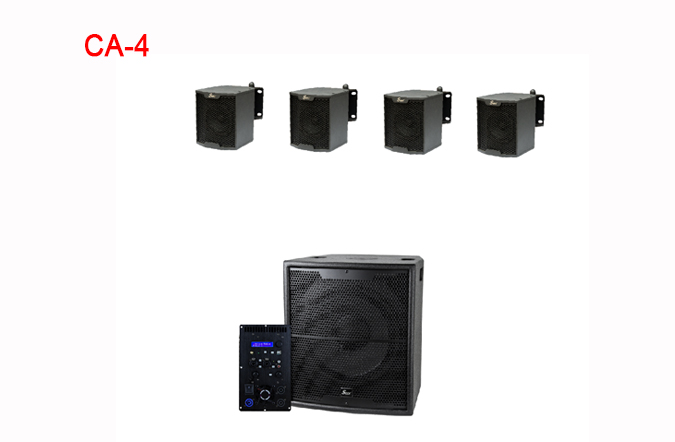

CA-4
Small to medium Music lounge,
Music cafe,house fo worship
Space-sensitive fill for theatre
Easily concealed for on-stage effects
High-quality distributed systems, paging and music
Background music systems in restaurants and clubs
Exhibit audio for museum displays
High-quality corporate boardroom installations
|
Model |
CA-4 |
|
Frequency Response |
150Hz-20KHz |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
70W |
|
Power Peak Handling |
140W/5Min |
|
Sensitivity |
95dB(2.83V/m) |
|
Maximum SPL |
115dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
Alumiunm |
|
Cabinet Surface Treatment |
Black Painting |
|
Dimensions H×W×D |
142×141×148mm |
| High inid driver (Neodymium) | 4 IN×1（75mm ） |
|
N.W. |
1.75Kg |
|
Model |
C-10BA (SUB for CA-3/CA-4) |
|
Frequency Response |
43Hz-800Hz |
|
Directivity Angle |
------------------ |
|
Impedance |
4 ohms |
|
Long-term Power(RMS) |
250W |
|
Power Peak Handling |
500W/5Min |
|
Sensitivity |
92dB(2.83V/m) |
|
Maximum SPL |
116dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
15-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
|
Dimensions H×W×D |
415×360×350mm |
|
Low (Italy Woofer) |
10 IN×1（75mm Neodymium） |
|
N.W. |
16.5Kg |
| Color | Black / White |
| Power | 220v/50Hz-60Hz |
| AMP power (3CH AMP) | 75W+75W+300W/ 4ohms With DSP |
