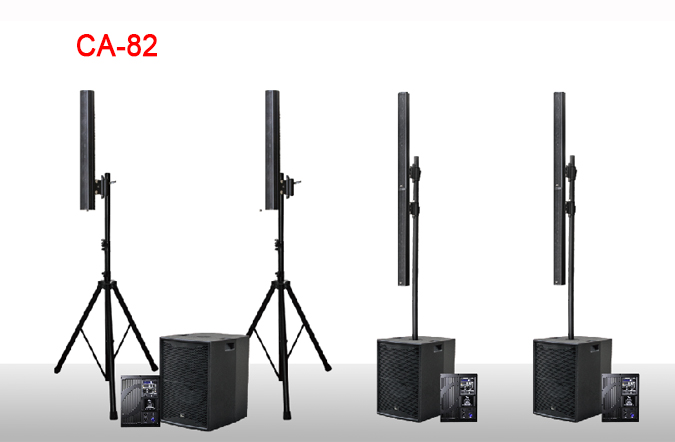

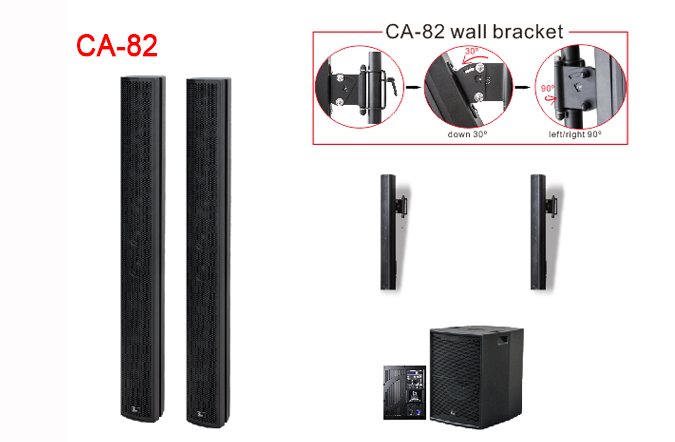

CA-82
|
Model |
CA-82 |
|
Frequency Response |
100Hz-20KHz |
|
Directivity Angle |
H120°×V120° |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
300W |
|
Power Peak Handling |
600W/5Min |
|
Sensitivity |
95dB(2.83V/m) |
|
Maximum SPL |
118dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
Alumiunm |
|
Cabinet Surface Treatment |
Black Painting |
|
Dimensions H×W×D |
635×74.5×64.5mm |
|
Low (Neodymium) (ltaly Woofer ) |
2 IN×8（44mm Ferrit ） |
| Mid,HF (Neodymium) (ltaly Woofer ) | 1.3 IN×2（26.5mm ） |
|
N.W. |
2.4Kg |
|
Model |
CA-18B |
CA-18BA(powered SUB) |
|
Frequency Response |
40Hz-250Hz |
40Hz-250Hz |
|
Directivity Angle |
----------- |
---------- |
|
Impedance |
8 ohms |
8 ohms |
|
Long-term Power(RMS) |
600W |
600W |
|
Power Peak Handling |
1200W/5Min |
1200W/5Min |
|
Sensitivity |
98dB(2.83V/m) |
98dB(2.83V/m) |
|
Maximum SPL |
123dB |
123dB |
|
Connection |
2×NL 4 speakon |
2×NL 4 speakon |
|
Enclosure Construction |
18-Birch Plywood |
18-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
Black Catalyzed Polyurethane Paint |
|
DimensionsH×W×D |
700×580×620mm |
700×580×620mm |
|
Low (Italy Woofer) |
18 IN×1(460mm) |
18 IN×1(460mm) |
|
N.W. |
38Kg |
41KG |
| Power | Passive | 220V/50Hz-60Hz |
