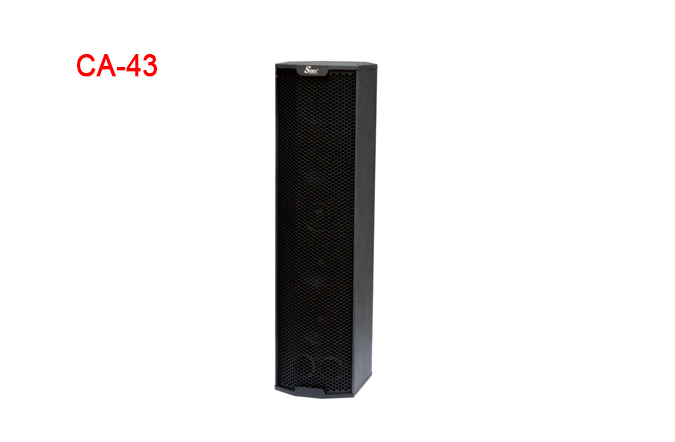

CA-43
The CA-43 column speaker are using the high quality 3inch
big power woofer to meet the demands of different small
and medium-scaled places ,and the box body is made of aluminium
alloy.
● Light weight aluminium alloy enclosure

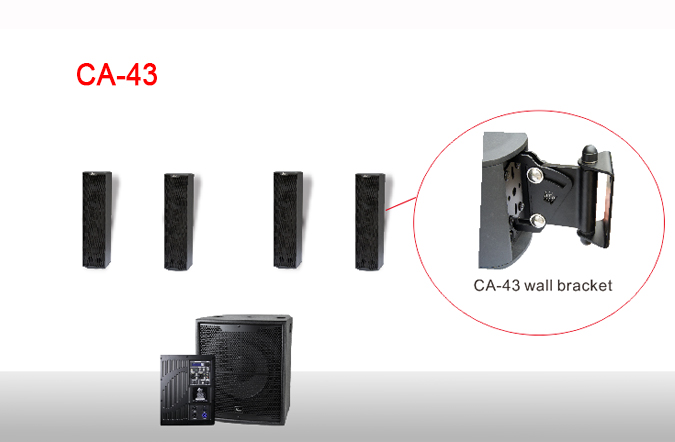

● Multi combinations and installation ways
● Used for moving performance,
● Church and multi-purpose hall
|
Model |
CA-43 |
|
Frequency Response |
90Hz-20KHz |
|
Directivity Angle |
H120°×V120° |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
200W |
|
Power Peak Handling |
400W/5Min |
|
Sensitivity |
95dB(2.83V/m) |
|
Maximum SPL |
115dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
Alumiunm |
|
Cabinet Surface Treatment |
Black Painting |
|
Dimensions H×W×D |
506×107×102mm |
|
Low (ltaly Woofer ) |
3 IN×4（75mm Ferrit ） |
| Mid,HF(Neodymium) (ltaly Woofer ) | 1.3 IN×1（26.5mm ） |
|
N.W. |
5.5Kg |
|

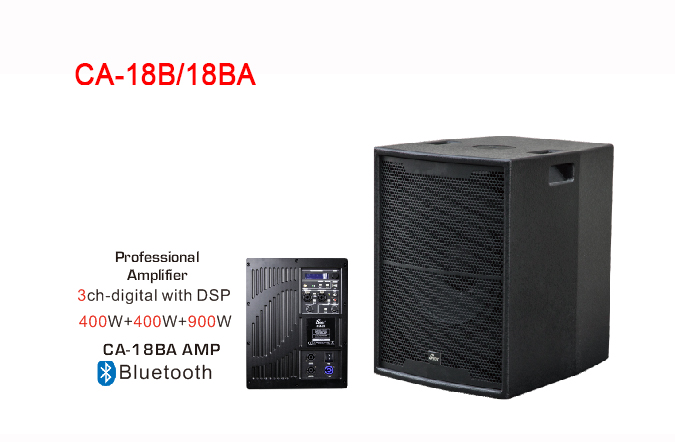

Model |
CA-18B |
CA-18BA(powered SUB) |
|
Frequency Response |
40Hz-250Hz |
40Hz-250Hz |
|
Directivity Angle |
----------- |
---------- |
|
Impedance |
8 ohms |
8 ohms |
|
Long-term Power(RMS) |
600W |
600W |
|
Power Peak Handling |
1200W/5Min |
1200W/5Min |
|
Sensitivity |
98dB(2.83V/m) |
98dB(2.83V/m) |
|
Maximum SPL |
123dB |
123dB |
|
Connection |
2×NL 4 speakon |
2×NL 4 speakon |
|
Enclosure Construction |
18-Birch Plywood |
18-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
Black Catalyzed Polyurethane Paint |
|
DimensionsH×W×D |
700×580×620mm |
700×580×620mm |
|
Low (Italy Woofer) |
18 IN×1(460mm) |
18 IN×1(460mm) |
|
N.W. |
38Kg |
41KG |
| Power | Passive | 220V/50Hz-60Hz |
