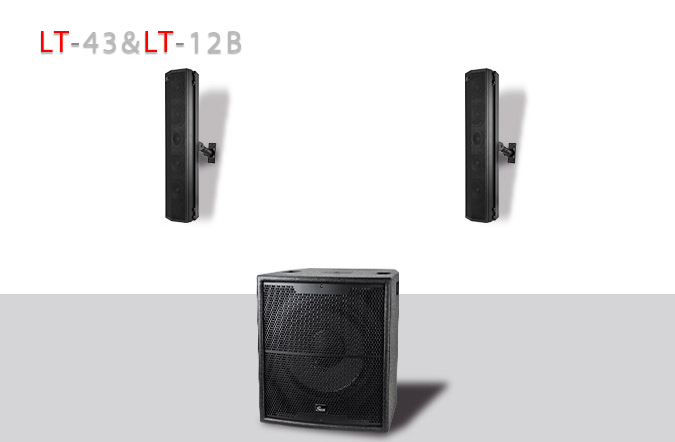

LT-43 & LT-12B
Specification:
|
Model |

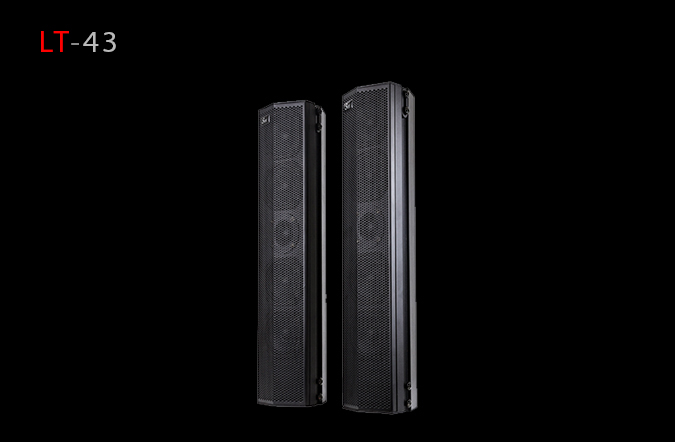

LT-43 |
|
Frequency Response |
90Hz-20KHz |
|
Directivity Angle |
H120°×V120° |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
200W |
|
Power Peak Handling |
400W/5Min |
|
Sensitivity |
95dB(2.83V/m) |
|
Maximum SPL |
115dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
Aluminum |
|
Cabinet Surface Treatment |
Black painting |
|
DimensionsH×W×D |
506×108×102.2mm |
|
Low (Italy Woofer) |
3 IN×4（75mm Ferrit） |
|
MID.HF(Italy Woofer) |
1Inx1(26.5mm) |
|
N.W. |
4.6Kg |
|
Model |

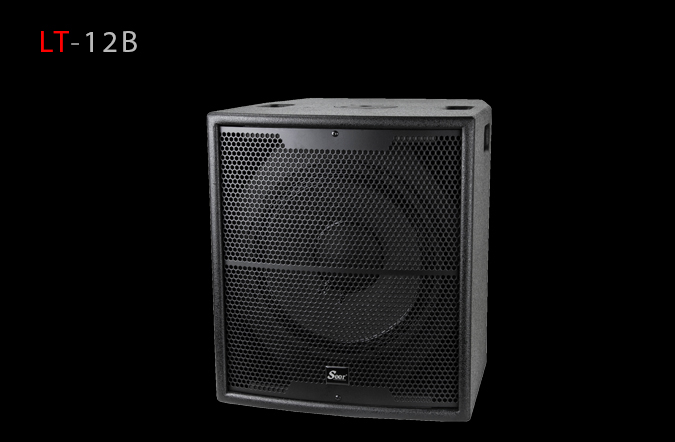

LT-12B |
|
Frequency Response |
40Hz-250Hz |
|
Directivity Angle |
------------------ |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
400W |
|
Power Peak Handling |
800W/5Min |
|
Sensitivity |
93dB(2.83V/m) |
|
Maximum SPL |
118dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
18-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
|
DimensionsH×W×D |
450×400×500mm |
|
Low (Italy Woofer) |
12 IN×1（310mm） |
|
N.W. |
24Kg |
| Power | Passive |
| AMP Power (3CH AMP) | Passive |
/
