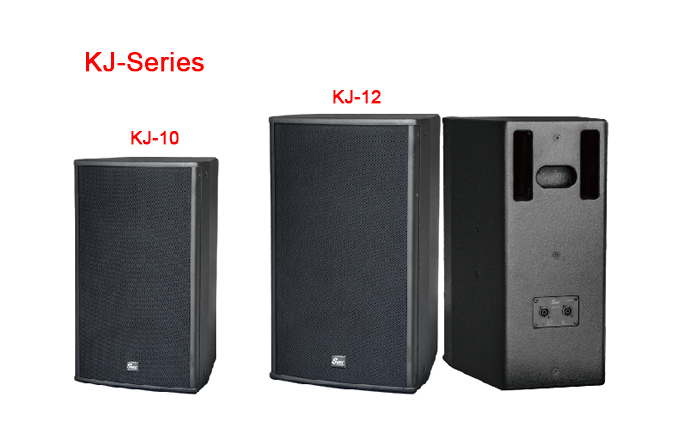

KJ-10/12
Specification:
|
Model |
KJ-10 |
KJ-12 |
|
Frequency Response |
55Hz-18KHz |
50Hz-20KHz |
|
Directivity Angle |
H90°×V60° |
H90°×V60° |
|
Impedance |
8 ohms |
8 ohms |
|
Long-term Power(RMS) |
300W |
400W |
|
Power Peak |
600W/5Min |
800W/5Min |
|
Sensitivity |
95dB（2.83v/m） |
98dB（2.83v/m） |
|
Maximum SPL |
118dB |
122dB |
|
Connection |
2×NL 4 speakon |
2×NL 4 speakon |
|
DimensionsH×W×D |
480×280×305mm |
600×350×382mm |
|
Low |
10 IN×1（260mm） |
12 IN×1（310mm） |
|
High |
2 IN×1（44mm） |
2 IN×1（44mm） |
|
N.W. |
16kg |
23kg |
