CA-23
|
Model |
CA-23 |
|
Frequency Response |
90Hz-20KHz |
|
Directivity Angle |
H120°×V120° |
|
Impedance |
16 ohms |
|
Long-term Power(RMS) |
120W |
|
Power Peak Handling |
240W/5Min |
|
Sensitivity |
92dB(2.83V/m) |
|
Maximum SPL |
110dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
Alumiunm |
|
Cabinet Surface Treatment |
Black Painting |
|
Dimensions H×W×D |
283×107.7×102.2mm |
|
Low (Neodymium) |
3 IN×2（100mm ） |
| High inid driver (Neodymium) | 2.5 IN×1（51mm ） |
|
N.W. |
2.5Kg |
| Color | Black / White |
|

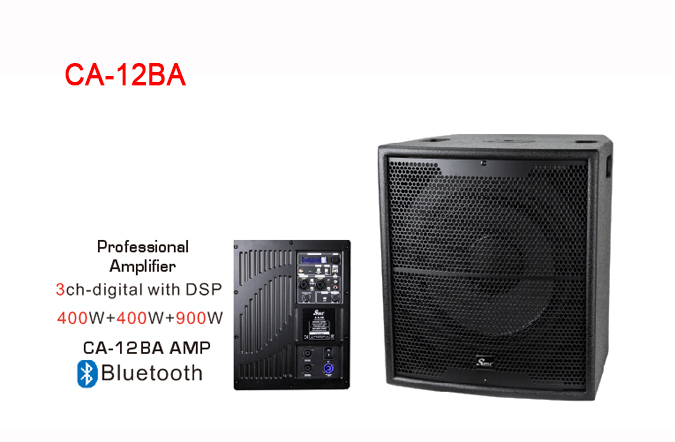

Model |
C-12BA |
|
Frequency Response |
40Hz-250Hz |
|
Directivity Angle |
------------------ |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
400W |
|
Power Peak Handling |
800W/5Min |
|
Sensitivity |
93dB(2.83V/m) |
|
Maximum SPL |
118dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
18-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
|
Dimensions H×W×D |
450×400×500mm |
|
Low |
12 IN×1（310mm ） |
|
N.W. |
27.5Kg |
| Power | 220v/50Hz-60Hz |
