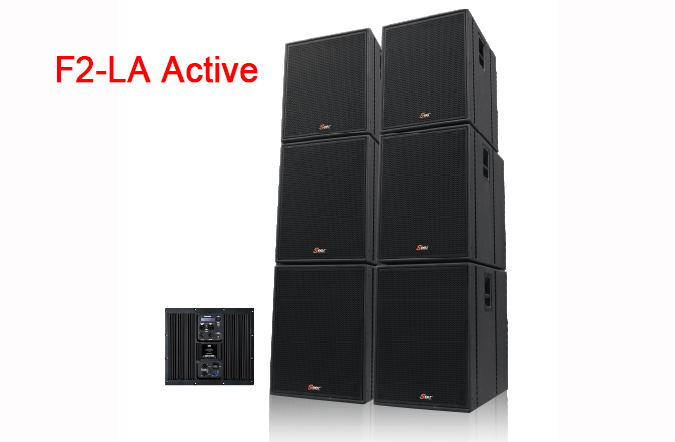

F2-LA Active
-
Active F2-LA is the active version top speaker, Built-in digital 3-ch amplifier module with DSP processor.
Thanks to the highly powerful mufti-channels D class switching power amplifier module
( 900W+900W+900W@8Ω), one active F2-LA can drive maximum 2 pieces passive F2-LB subwoofer.
Specification:
|
Model |
F2-LA Active |
|
Frequency Response |
85Hz-20KHz |
|
Directivity Angle |
H120°×V20° |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
500W |
|
Power Peak Handling |
1000W |
|
Sensitivity |
105dB |
|
Maximum SPL |
133dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
18-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
|
DimensionsH×W×D |
520×520×520mm |
|
Low |
12 IN×1（260mm） |
|
High (Neodymium) |
3 IN×1（75mm) |
|
N.W. |
58Kg |
|
Power |
AC220V/50Hz-60Hz |
