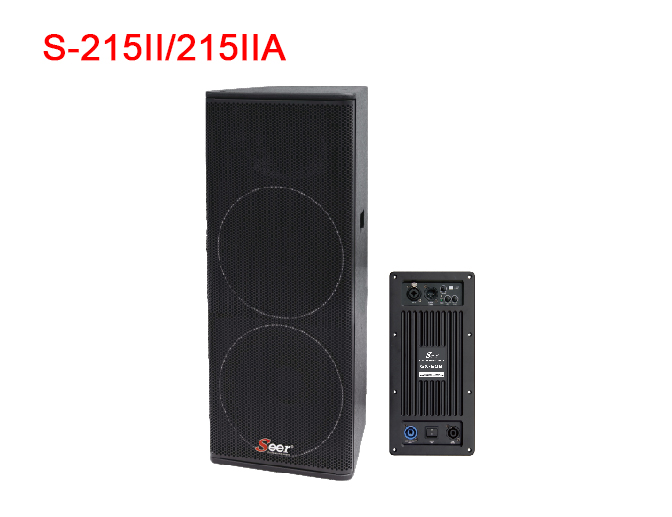

S-215II/215IIA
Specification:
|
Model |
S-215II |
S-215IIA |
|
Frequency Response |
55Hz-20KHz |
55Hz-20KHz |
|
Directivity Angle |
H90°×V50° |
H90°×V50° |
|
Impedance |
4 ohms |
4 ohms |
|
Long-term Power(RMS) |
800W |
800W |
|
Power Peak |
1600W/5Min |
1600W/5Min |
|
Sensitivity |
103dB(2.83V/M) |
103dB(2.83V/M) |
|
Maximum SPL |
125dB |
125dB |
|
Connection |
2×NL 4 speakon |
2×NL 4 speakon |
|
DimensionsH×W×D |
1120×445×425mm |
1120×445×425mm |
|
Low |
15 IN×2（380mm） |
15 IN×2（380mm） |
|
High |
2 IN×1（44mm） |
2 IN×1（44mm） |
|
N.W. |
40kg |
40kg |
| Power | AC 220V / 50Hz-60Hz |
