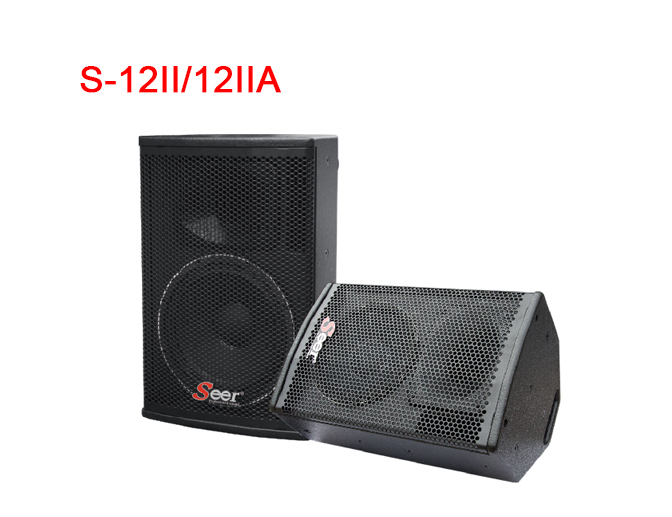

S-12II/12IIA
Specification:
|
Model |
S-12II |
S-12IIA |
|
Frequency Response |
55Hz-20KHz |
55Hz-20KHz |
|
Directivity Angle |
H90°×V50° |
H90°×V50° |
|
Impedance |
8 ohms |
8 ohms |
|
Long-term Power(RMS) |
300W |
300W |
|
Power Peak |
600W/5Min |
600W/5Min |
|
Sensitivity |
98dB(2.83V/M) |
98dB(2.83V/M) |
|
Maximum SPL |
126dB |
126dB |
|
Connection |
2×NL 4 speakon |
2×NL 4 speakon |
|
DimensionsH×W×D |
579×360×318mm |
579×360×318mm |
|
Low |
12 IN×1（310mm） |
12 IN×1（310mm） |
|
High |
2 IN×1（44mm） |
2 IN×1（44mm） |
|
N.W. |
20kg |
22kg |
| Power | AC 220V / 50Hz-60Hz |
