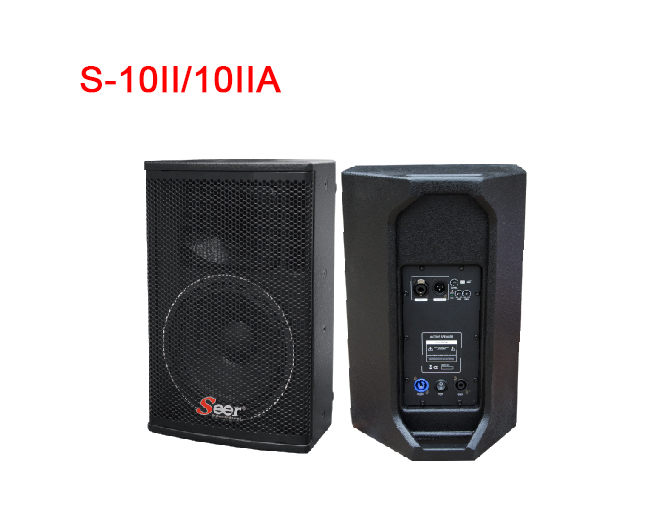

S-10II/10IIA
Specification:
|
Model |
S-10II |
S-10IIA |
|
Frequency Response |
55Hz-18KHz |
55Hz-18KHz |
|
Directivity Angle |
H90°×V50° |
H90°×V50° |
|
Impedance |
8 ohms |
8 ohms |
|
Long-term Power(RMS) |
200W |
200W |
|
Power Peak |
400W/5Min |
400W/5Min |
|
Sensitivity |
95dB(2.83V/M) |
95dB(2.83V/M) |
|
Maximum SPL |
123dB |
123dB |
|
Connection |
2×NL 4 speakon |
2×NL 4 speakon |
|
DimensionsH×W×D |
490×326×288mm |
490×326×288mm |
|
Low |
10 IN×1（260mm） |
10 IN×1（260mm） |
|
High |
1.5 IN×1（34mm） |
1.5 IN×1（34mm） |
|
N.W. |
13kg |
14kg |
| Power | AC 220V / 50Hz-60Hz |
