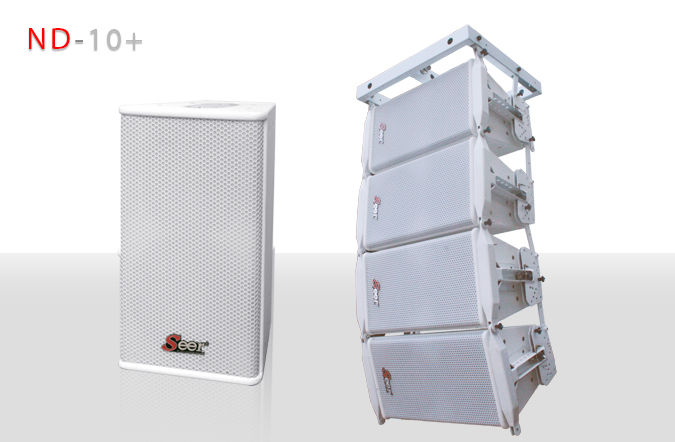

ND-10+
-
ND-10+ is our ND-10’s upgrade model, It is the one point big power touring speaker., Focus, Fidelity & Flexibility. It has one special technic neodymium 10" woofer and 2" neodymium tweeter. ND-10+ RMS 350W, SPL 130dB, cabinet only 18 kgs. The ND-10+ box is constructed by Russia birch plywoodand different paint color for choice. We said it: Never Remove Heavy Speaker again!
Comprehensive hardware accessories, for both fixed and mobile system, optimize inter-cabinet angles and rigging. Configurations types:
A. 1 pc * ND-10+ lift ring,
B. 2 pcs * ND-10+ on the truss hook with U-bracket,
C. 1/2 pcs * ND-10+ horizontal on U bracket with pole/tripod mount,
D. 3/4 pcs * ND-10+ horizontal on Mini-XBOWs,

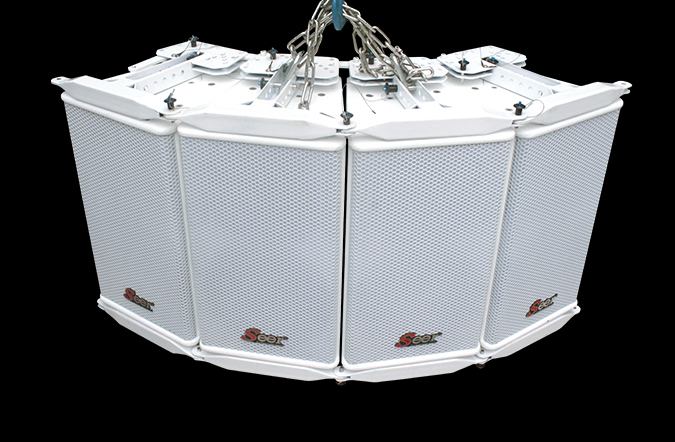

E. 4/6/8 pcs * ND-10+ on touring bumper
Applications
Stadiums
Places of worship
Piaza
Concert halls
Sports arenas
Specification:
|
Model |
ND-10+ |
|
Frequency Response |
85Hz-20KHz |
|
Directivity Angle |
H90°×V40° |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
350W |
|
Power Peak Handling |
700W |
|
Sensitivity |
103dB |
|
Maximum SPL |
130dB |
|
Connection |
2×NL 4 speakon |
|
Enclosure Construction |
15-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
|
DimensionsH×W×D |
295×320×510mm |
|
Low (Neodymium) |
10 IN×1（260mm） |
|
Mid |
------------------------- |
|
High (Neodymium) |
2 IN×1（44mm) |
|
N.W. |
18Kg |
.jpg)
Specification:
|
Model |
ND-15B |
|
Frequency Response |
50Hz-2KHz |
|
Directivity Angle |
---------------- |
|
Impedance |
8 ohms |
|
Long-term Power(RMS) |
800W |
|
Power Peak Handling |
1600W/5Min |
|
Sensitivity |
110dB(2.83V/m) |
|
Maximum SPL |
138dB |
|
Connection |
2×NL 8 speakon |
|
Enclosure Construction |
18-Birch Plywood |
|
Cabinet Surface Treatment |
Black Catalyzed Polyurethane Paint |
|
DimensionsH×W×D |
590×556×500mm |
|
Low |
15 IN×1（380mm） |
|
High |
-------------------- |
|
N.W. |
64Kg |
