Seeraudio

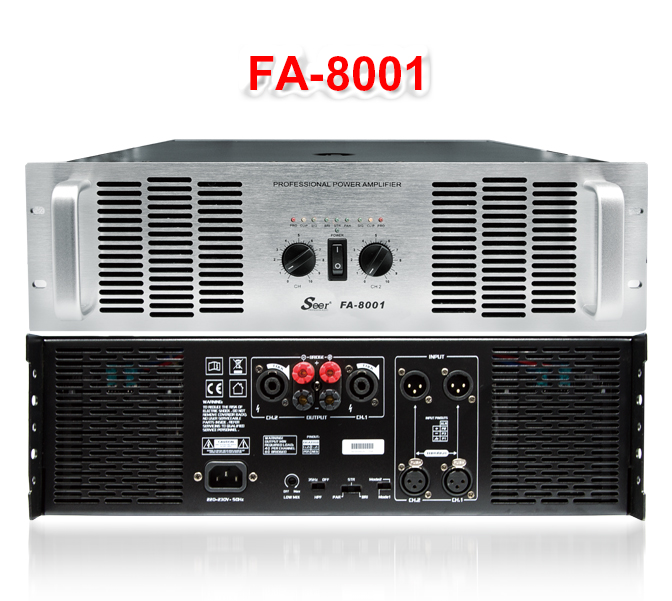

　FA-8001

haracteristics:

FA series is the professional two-channel Analog amplifier used Class H amplification circuit with RMS equal, which offer more efficiency, more power and less heat. It is offer various power ratings in 6 models from 2x530 watt/ch. @ 4 ohm to 2x2200 watts/ch @ 4 ohm.

Features:

1.Professional aluminum metal cabinet shows its stability,reliability, and fascination.

2.Advanced output H-class circuit ,ensuring perfect sound quality condition, and the power and efficiency are higher than the conventional AB-class circuit.

3.Effective heat dissipation system, comprising a high surface area of the heat sink, a pair of dual cooling fan to ensure a rapid and reliable cooling.Good quality and rugged construction for most of the expansion of applications are ideal power amplifier. All amplifier are similar in operation, the manual applies to all modes. The manual contains very important information, so in the connection or operation of your amplifier carefully read the manual.

4.The unit has consummate working staus indications including, you can be clear at aglance of the working status through the LED indicator in the front panel of the amplifier, the letthe operation more easily.

5. Perfect Protection Circuit Design:

A. Soft start.

B. Over temperature protection.

C. Over load protection.

D. Short Circuit Limited Protection.

E. AC Line fuse

F. Limiter Protection.

G. DC protection.

H. Thermal cut.

Specification:

MODEL	FA-601	FA-1201		FA-2401		FA-4801		FA-5001	FA-8001
8Ω、1KHz, RMs, Stereo	2X350W	2X550W		2X750W		2X900W		2X1200W	2X1800W
4Ω、1KHz, RMs, Stereo	2X530W	2X840W		2X1150W		2X1400W		2X2000W	2X2200W
2Ω、1KHz, RMs, Stereo	------	-------		-------		-------		------	2X2800W
Bridged mono 8Ω	1060W	1680W		2300W		2800W		4000W	4400W
Parallel 2Ω	1060W	1680W		2300W		2800W		4000W	4400W
Output connectons	2 Speakon for Sereo &Bridge Output							------
Input Impedance	20KΩ/Balancde, 10KΩ/un-Balanced
Input sensitivity	0.77V
Crosstalk	62dB							<-80dB
THD	≤0.03							≤0.1%
S/N Ratio	≥98 dB
Crosstalk@Rated OUTPUT 8Ω/1KHz	62 dB							62dB
Slew Rate	15V/Us							>60V/Us
Damping Factor	>230							>300
Frequency Response	20Hz-20KHz, +/-1 dB							20Hz-20KHz，-3dB ±1dB
Cooling system	TWO steps speed fan
Power Supply	AC:220V/240V 50Hz/60Hz
Dimension(WxDxH)	482X460.5X88mm
Net Weight	14.75kg		16.8kg		19.05kg		23.35kg	38kg	41kg
